Description

The Schlage Commercial Athens Keyed Corridor Door Lever features Corridor Door Lever, Zinc construction. Shared product specifications apply across available finish or configuration variants when shown.

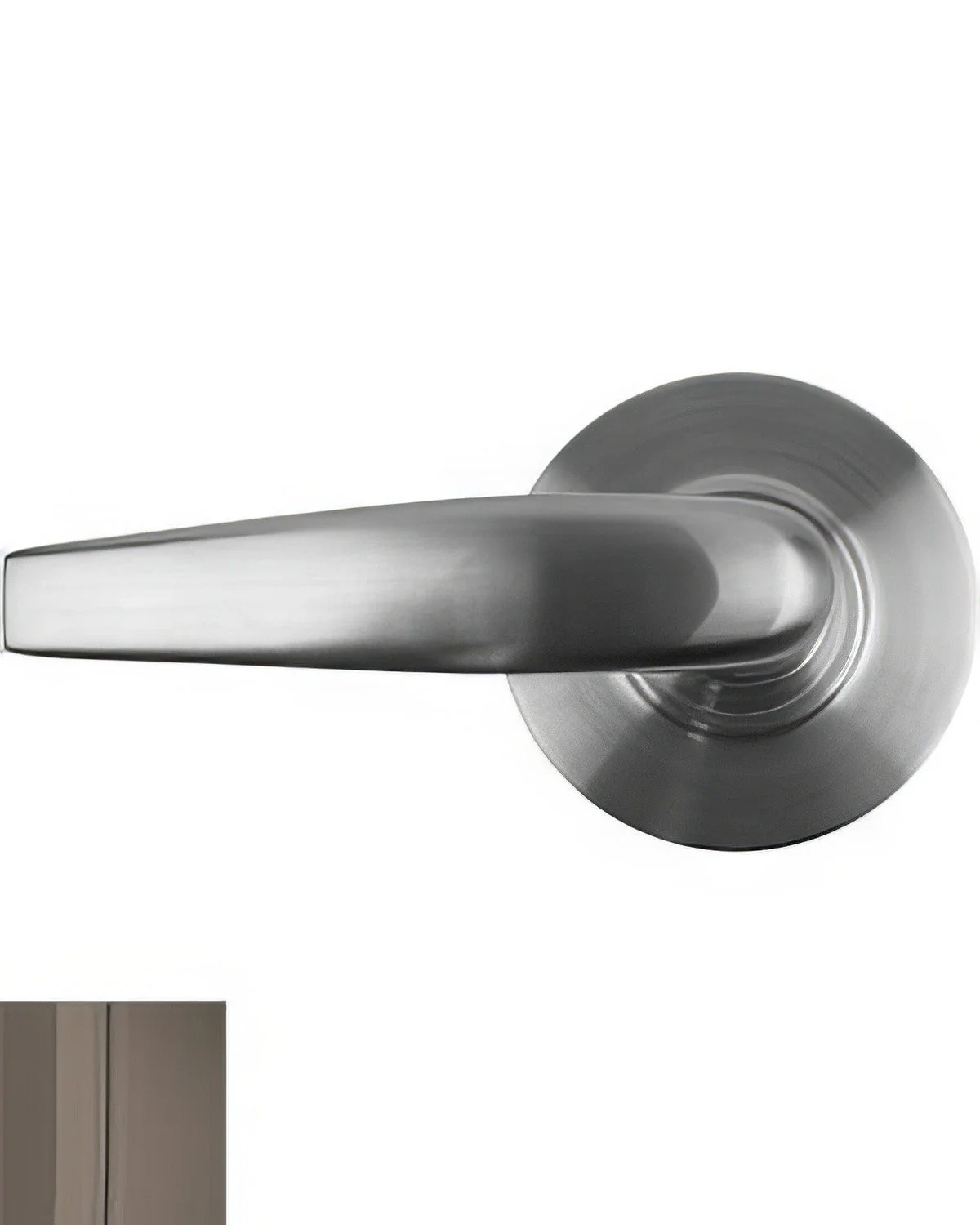

Athens Keyed Corridor Door Lever

• Brand: Schlage Commercial
• Product SKU: ND73RATH
• Product Type: Keyed Entry Door Lever
• Collection: Athens
• Function: Corridor Door Lever
• Material: Zinc
• Backset: 2-3/8″, 2-3/4″, 3-3/4″, and 5″
• Door Thickness: 1-5/8″ to 2-1/8″
• Cross Bore: 2-1/8″
• Edge Bore: 1″
• Latch Type: Round Corner, Square Corner
• Handing: Left, Right, and Reversible
• Cylinder: Interchangeable 6 Pin Schlage C123
• ANSI/BHMA: A156.2
• ADA Compliant: Yes
• Rose Diameter: 3.44
• Lever Length: 4.56
• Projection: 2.8125
• Finish Options: Oil Rubbed Bronze, Polished Brass, Polished Chrome, Satin Brass, Satin Bronze, Satin Chrome, Satin Nickel
• Approved Commercial Use: Yes

Additional Information

Schlage ND73RD-ATH Installation Sheet

View Schlage Manufacturer Warranty

Shop All Schlage Products

Weight 2.5 lb

SKU ND73RATH

ADA Compliant Yes

Brand Schlage Commercial

Function Corridor

Material Zinc

Product Class Commercial

Certification A156.2

Backset 2-3/4″,2-3/8″,3-3/4″,5″

BHMA Certification Grade 1

Cylinder Interchangeable 6 Pin Schlage C123

Collections Athens

Configuration Door Lever

Free Shipping Yes

Handing Left Hand,Right Hand,Reversible

Handle Style Lever

Door Thickness 1-5/8″ to 2-1/8″

Edge Bore 1"

Rose Diameter 3.44

Shape Flat, Straight

Style Commercial

Latch Faceplate Round Corner, Square Corner

Panic Proof Yes

Approved for Commercial Use Yes

Cross Bore 2-1/8"

Projection 2-13/16"
