Description

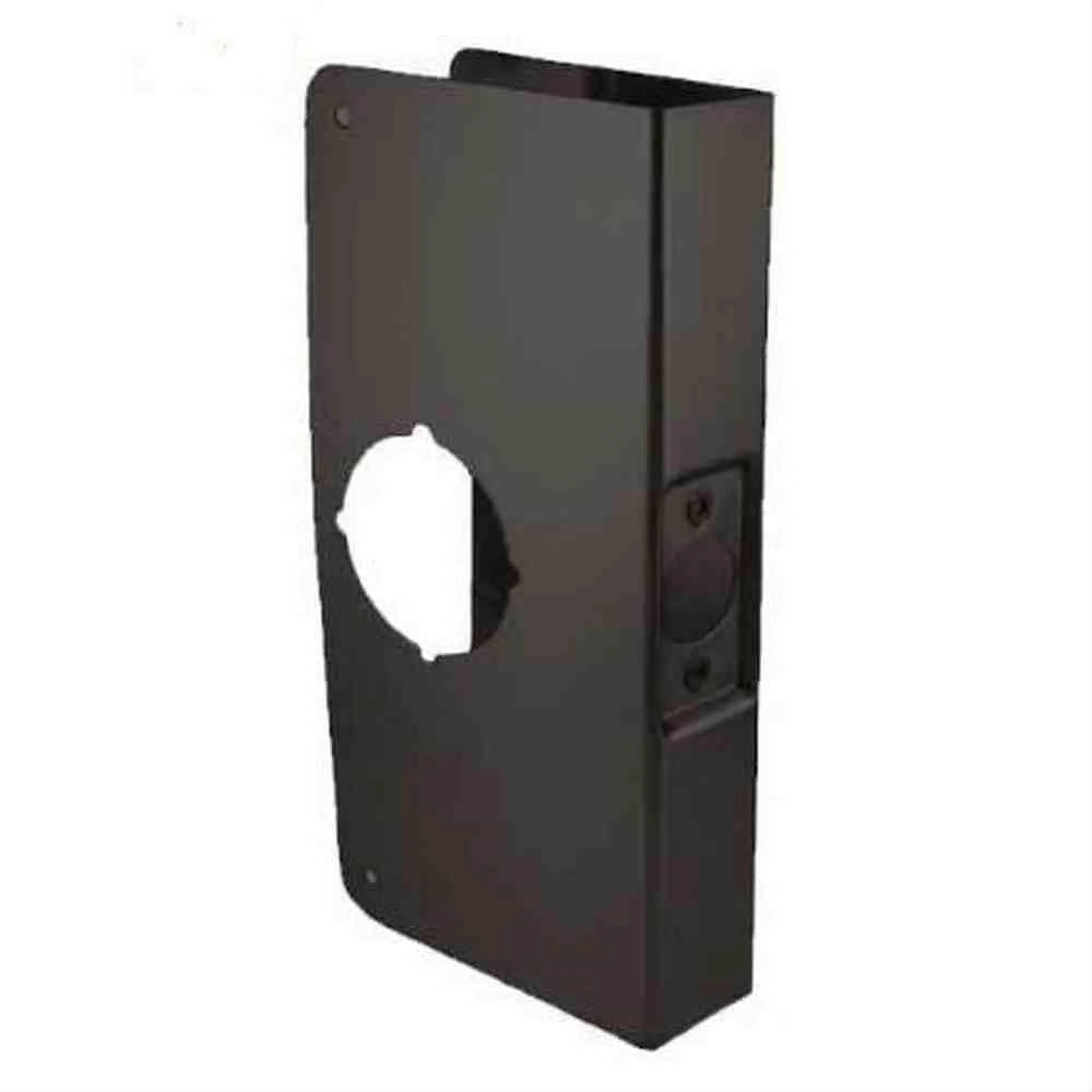

The Don-Jo CW214C Wrap Around is a wrap around door plate for door hardware applications. Shared product specifications apply across available finish or configuration variants when variants are present.

Wrap Around Door Plate

• Brand: Don-Jo
• Model / SKU: Don-Jo-CW214C
• Product Type: Wrap Around Door Plate
• Material: Steel
• Gauge: 22 (.032)
• Detail: Available in 3 Finishes
• Backset: 2-3/8″
• Dimensions: 4-1/4″ x 9″
• Door: 2-1/4″
• Detail: Latch hole centered in door
• Trim Screws: 4 ea. #8 x 3/4″ Phillips Truss Head fasteners
• Latch Screws: 2 ea. #8-32 x 1/4″ Flat Head (per latch) fastener
• Detail: One Year Limited Manufacturer’s Warranty

Additional Don-Jo Product Information

Don-Jo Manufacturer Warranty

Shop All Don-Jo Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.

Weight 1.5 lb

SKU Don-Jo-CW214C

Brand Don-Jo

Function Wrap Around

Material Steel

Backset 2-3/8″

Gauge 22 (.032)

Warranty One Year Limited
